Shenzhen kosintec Co., Ltd keeping up with market development trends, advancing with the times, through professional industry analysis and precise market positioning, relying on strong production strength and strong technical force, Wholesale High Resolution 943*943 33.1 Inch Square Lcd Media Player Smart Monitor Digital Signage With Android For Advertising have been manufactured. Digital Signage and Displays has won high attention and praise from the industry and market. Shenzhen kosintec Co., Ltd has successfully expanded its business in market in the past few years and it is very possible for the company to have a better development in the future.
Application | Indoor | Color | black |
Panel Size | 33.1 | Supplier Type | Original manufacturer |
Media Available | datasheet, Photo, Other | Place of Origin | Guangdong, China |
Model Number | a-Si TFT-LCD | Brand Name | KosinTec |

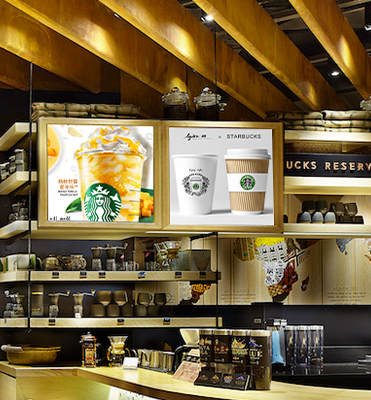

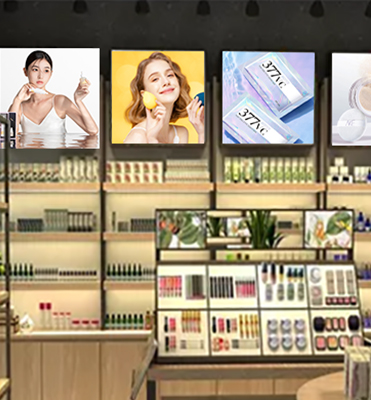

use | advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment | Function | SDK |
Pixel Pitch | 2.5mm, 33.1 | Specification | Touch Screen |
Product name | square LCD monitor | Size | 33.1 INCH |
Resolution | 943*943 | Active area | 594mm(H)x594mm (V) |
Brightness | 500CD | CPU | ARM Cortex-A17 |
RAM | 2G DDR3 | Internal memory | 8G EMMC |
Operation system | Android 7.1 | Power supply | ~AC 100-240V 50/60Hz |
Display | Panel | 33.1" |
Model | a-Si TFT-LCD | |
Active area | 594mm(H)x594mm (V) | |
Ratio | >3:1 | |
Resolution | 943*943 | |
Display color | 16.7M | |
Dot pitch | 0.315×0.315 mm (H×V) | |
Brightness | 500CD | |
Viewing angle | 178° | |
Response time | 8ms | |
Refresh frequency | 60HZ | |
Language | Chinese/English | |
Video interface | N/A | |
Audio interface | N/A | |
Other interface | N/A | |
System | CPU | ARM Cortex-A17 |
RAM | 2G DDR3 | |
Internal memory | 8G EMMC | |
WIFI | 2.4G WIFI 802.11b : DQPSK, DBPSK, CCK 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK | |
Bluetooth | N/A | |
Network | LANX1 | |
Interface | TF Card×1/USB×2 DCIN×1 OTGX1 MICX1 | |
Operation system | Android 7.1 | |
Power supply | ~AC 100-240V 50/60Hz | |
Power consumption | 38W | |
Standby power consumption | ≤0.1W(Board only) | |
Storage temperature | -20--60° | |
Speaker | 1×1.3W | |

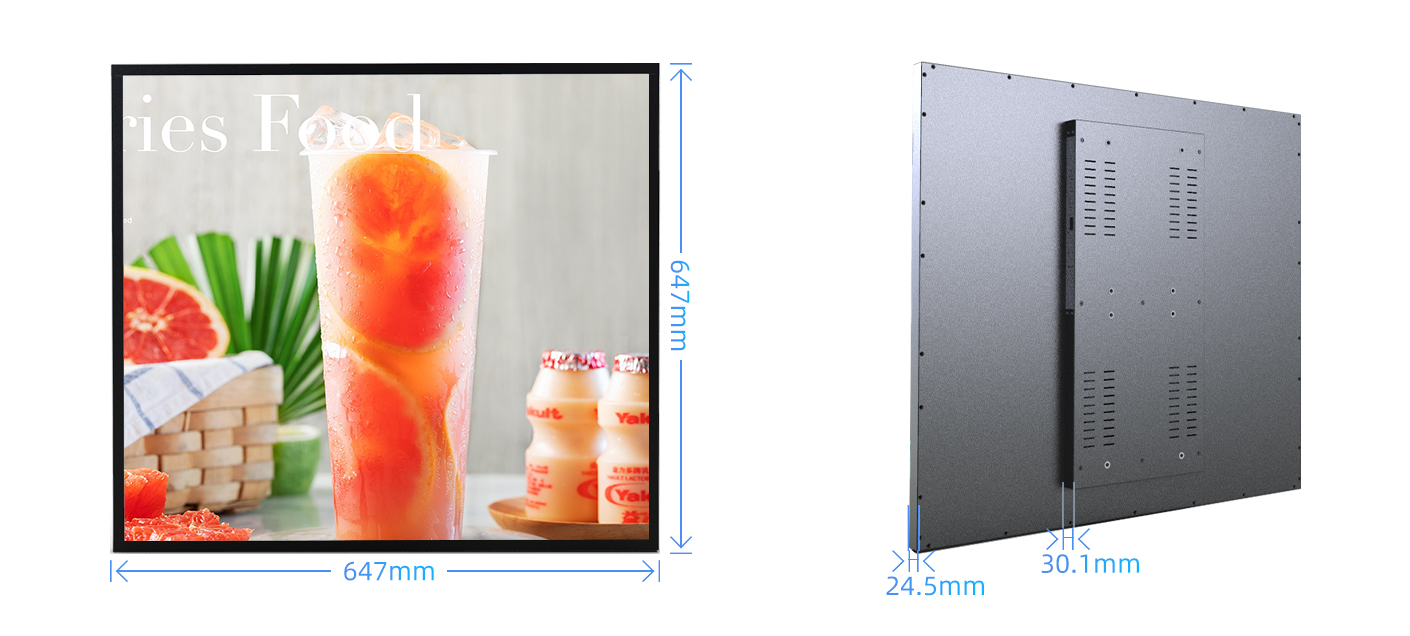

Dimension | 647×647×24.5mm | |
Weight | 10.4KG | |
Remote control | N/A | |
Power adapter | AC 12V/5A |
