VR
PRODUCT DISPLAY



PRODUCT ADVANTAGES
OEM/ODM customized
meet different needs
Timed play
Release information  at a fixed time
Remote operation
One-click publishing  via the web
IPS hard screen
178° wide viewing angle
timing boot
timing boot regularly shutdown

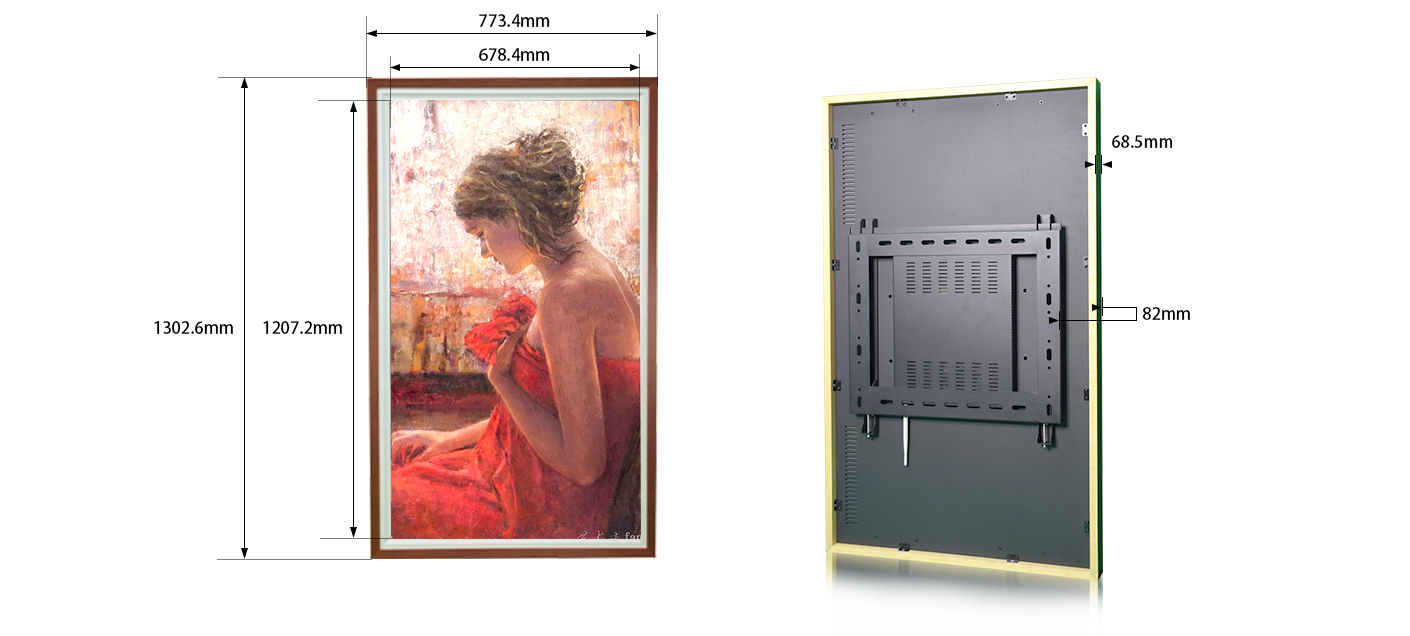

PRODUCT SIZE


PRODUCT FEATURES

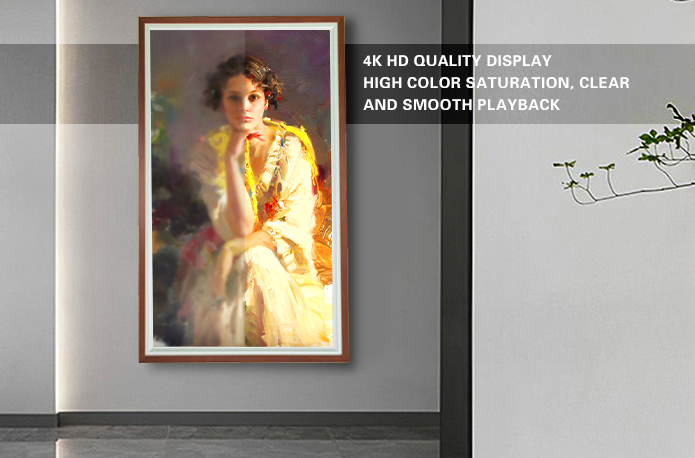

4K HD picture quality display

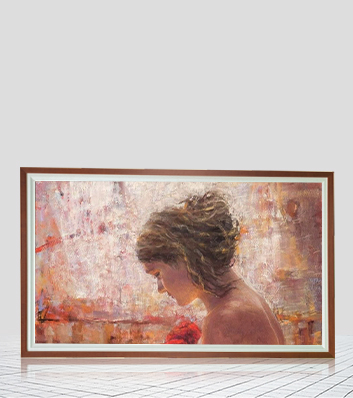

Kosintec Android art screen digital photo frame art gallery display with high color saturation,clear and smooth playback

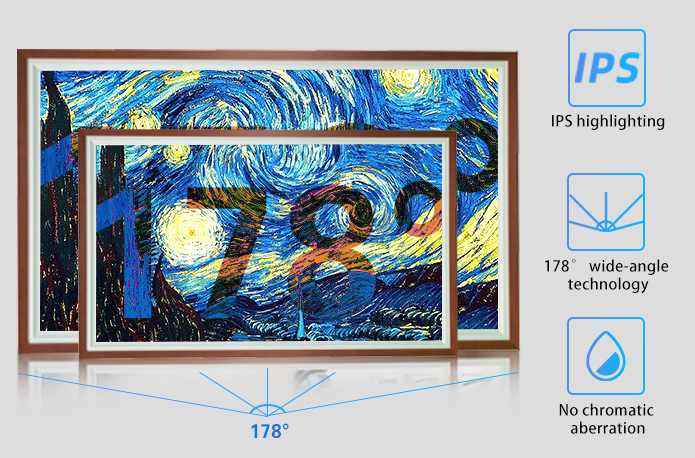

178°viewing angle commercial IPS screen

Kosintec Android art screen digital photo frame art gallery display adopt commercial IPS screen, 178° wide-angle technology,using IPS highlight display, with richer colors and no chromatic aberration.

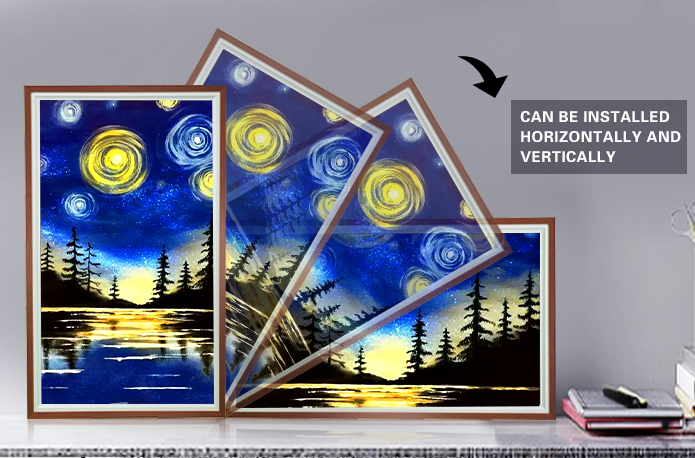

Horizontal and vertical installation

Kosintec Android art screen digital photo frame art gallery display adopts horizontal and vertical screen intelligent switching,which can adapt to different installation needs.




Anti-glare screen

Kosintec anti-glare screens specifically designed for display digital are and NFT.
A non-glossy screen means no reflections or glare from nearby light sources.

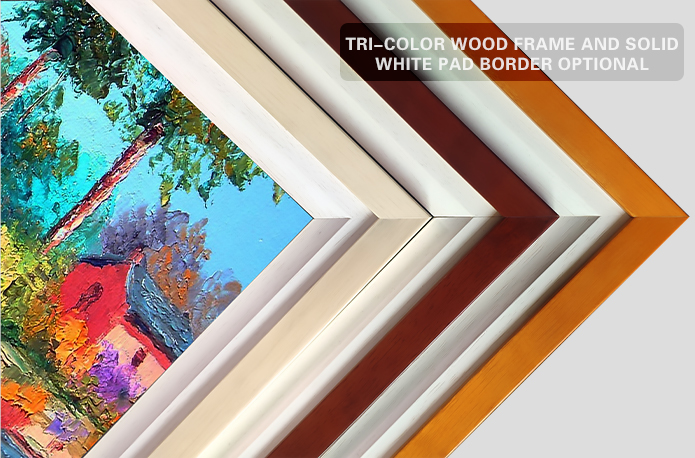

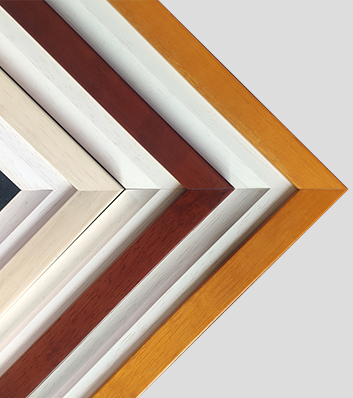

Bespoke frames

Kosintec Android art screen digital photo frame art gallery display support three colors wooden frames and physical white mat borders optional.


PARAMETERS


Model
KS-B550AHD-HP



OS

CPUAllwinner A40i quad-core,up to 1.2GHZ
RAMDDR-III 2GB
Memory8 GB
OSAndroid7.1.1







Display

Size55"
Resolution1920*1080
Display Area1302.6*773.4*82mm
View Angle178°
Contrast1500:1
Brightness300cd/m2 type
Response time8ms
Chromaticity16.7M
Color gamut72%
Power supplyOperating Voltage100V-240VAC 60/50Hz


Power consumption

Standby power consumption ≤0.5W0
Power consumption≤150W






Interface

USB 2.0x2
USB hostx3
HDMI outputx1(support 1080P output)
LVDS outputx1(Can directly drive single and double 6bit/8bit LCD screens)
Ethernetx1(10M/100M adaptive Ethernet)
TF cardSupport
4GSupport




Parameters

Working temperature0℃~50℃
Working humidity10%~85%
Storage temperature-20℃~60℃
Storage humidity5%~95%
Atmospheric pressure86kPa~104kPa







Accessories

Splicing machinex1
User's manualx1
Network cablex1
Power cordx1
Certificate/Warranty Cardx1
Wall bracketOptional
ColorWood color,Dark wood,Brown(Optional)
Other functionUse the mobile APP publishing function for free
