Shenzhen kosintec Co., Ltd keeping up with market development trends, advancing with the times, through professional industry analysis and precise market positioning, relying on strong production strength and strong technical force, Kosintec 46 Inch Seamless Display Wall Lcd 2x2 Video Wall Indoor Hd Led Video Wall have been manufactured. In recent years, we've updated technologies or higher-efficiency manufacturing of the product. Its application ranges have been expanded to the field(s) of Digital Signage and Displays. Looking back to the good old days,Shenzhen kosintec Co., Ltd have done our best to achieve our goal of serving customers with the best quality products and services. In the future, we will keep improving our capabilities and upgrading technologies to provide more and better products to satisfy the growing needs of customers.
| Application | Indoor | Type | LCD |
| Color | black | Supplier Type | Original manufacturer, ODM, OEM, Other |
| Media Available | Photo, Other | Place of Origin | Guangdong, China |
| Model Number | LCD VIDEO WALL | Brand Name | KOSINTEC |

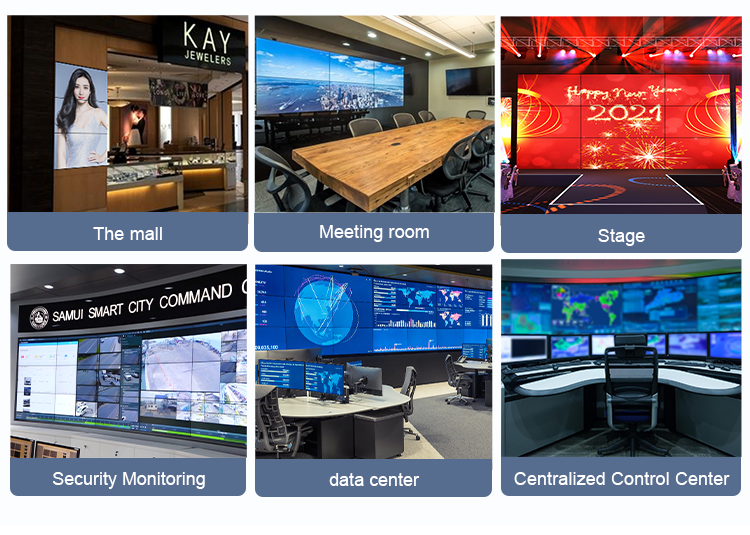

| use | advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding | Function | SDK |
| Specification | Touch Screen | Item | 46 inch lcd tv background wall |
| LOGO | Customized LED LOGO | Screen to screen | 3.5mm |
| Size | Customized | bezel | 3.5mm |
| Brightness | 700cd/m2 | Viewing Angle | 178°(H) / 178°(V) |
| Response Time | 8ms | Contrast Ratio | 1400:1 |
| Input Voltage | AC100~240V 50/60 HZ |
Panel size | 46 inch | ||
Panel Brand | Original LG-Grade A+ Panel | ||
Panel P/N | LD550DUN-THA8 | ||
Bezel | 3.5mm | ||
Aspect Ratio | 16:9 | ||
Resolution | 1920*1080 FHD | ||
Backlight | WLED | ||
Luminance(nits) | 700 cd/m² | ||
Physical dimension | 338×295×60(mm) | ||
Contrast | 1400:1 | ||
Surface | Haze 3% | ||
Viewing Angle | 178H/178V | ||
Display Colors | 8Bit, 1.06B | ||

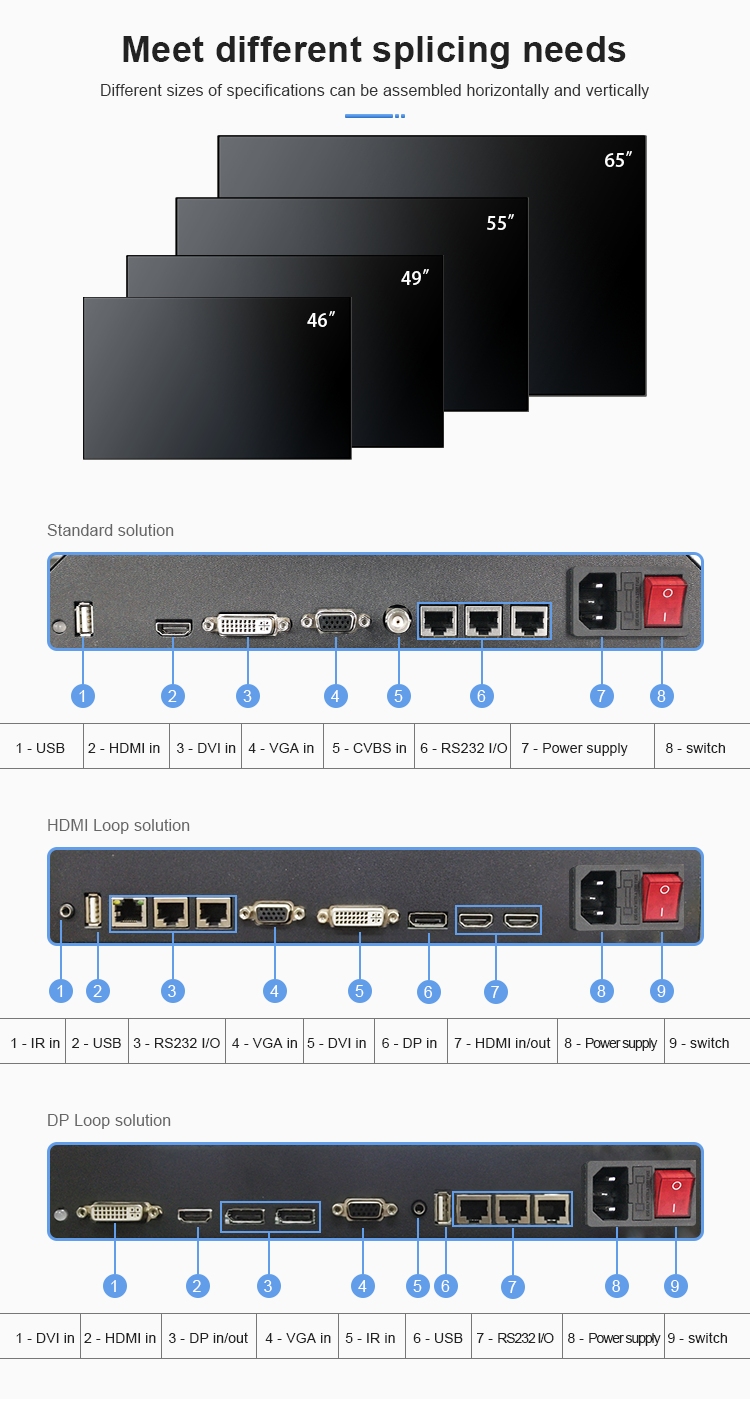

Input | HDMI/DVI/VGA/CVBS/RJ45(rs232)/USB, (optional) | ||
Output | RJ45(rs232) (optional) | ||
Standby mode | 0.56W | ||
Max. Power | 280W | ||
Power Supply | AC100~240V 50/60 HZ | ||
Life time | >60,000hrs | ||
Working temp. | 0-45℃ | ||
Working Humidity | 10%-80% | ||
Warranty | One year warranty, Lifetime maintenance | ||
Net Weight | 3.5kg | ||
