Digital Shelf Edge Displays
Home > Products > Digital Shelf Edge Displays
VR
Recommended
Replay
PRODUCT DISPLAY



PRODUCT ADVANTAGES
OEM/ODM customized
meet different needs
Timed play
Release information  at a fixed time
Remote operation
One-click publishing  via the web
IPS hard screen
178° wide viewing angle
timing boot
timing boot regularly shutdown

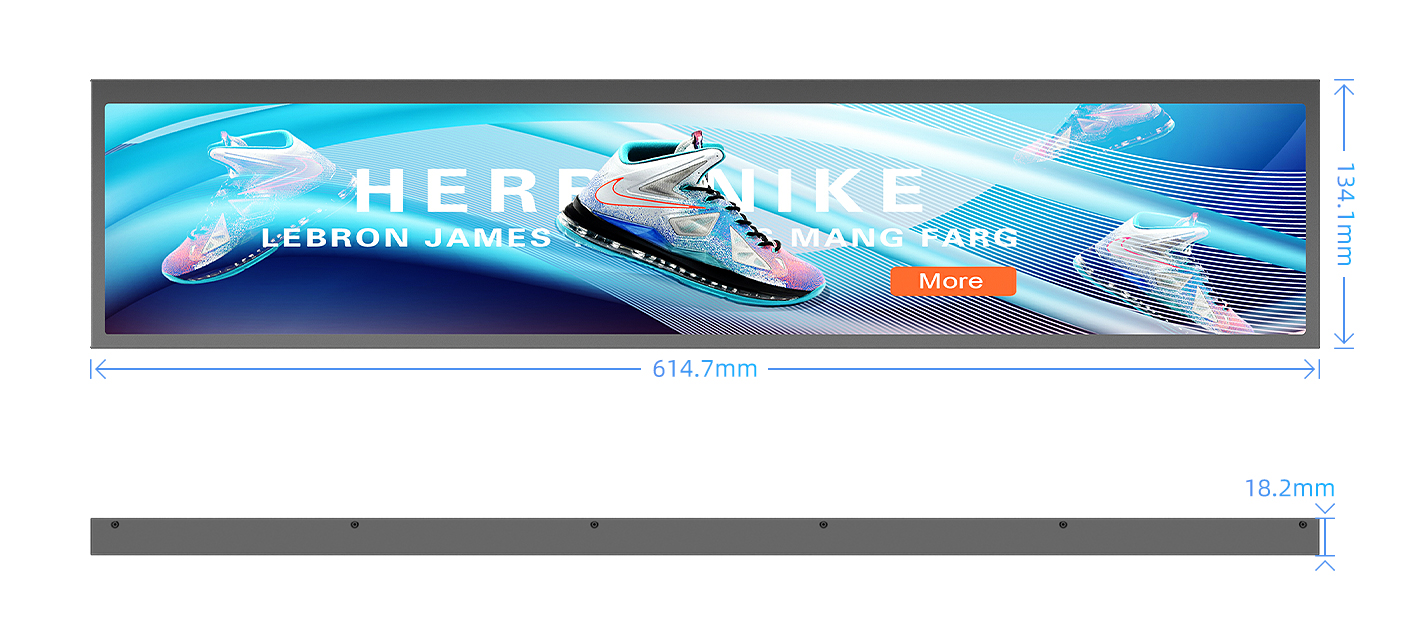

PRODUCT SIZE


PRODUCT FEATURES

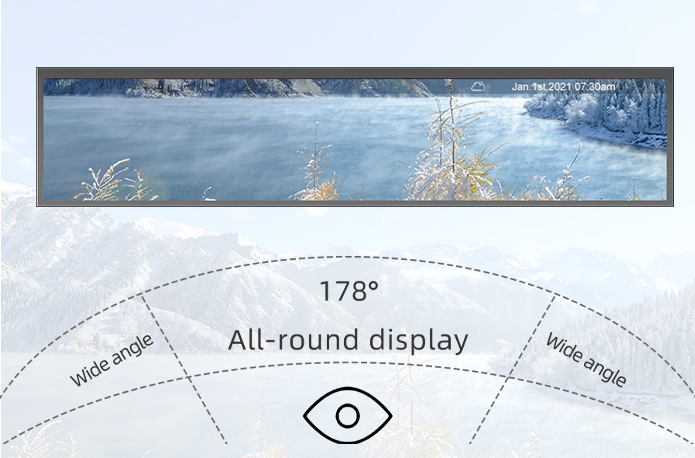

Ultra-wide angle

Kosintec 24 inch ultra-thin display use unique viewing angle processing technology, the viewing angle is up to 178°

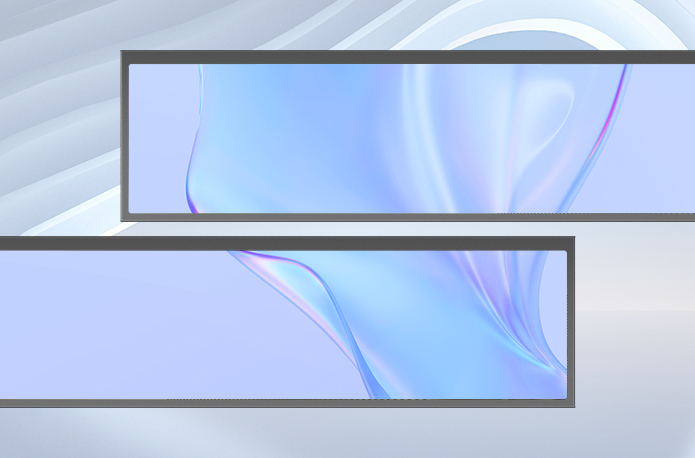

Ultra-narrow bezel

Kosintec 24 inch ultra-thin bar display is assembled from every precision part, making the products more delicate and beautiful



Ultra-clear image quality to avoid glare and blur

The A+ screen is adopted to make the color more pure, the pixel is up to 4K, the color is rich and colorful, and the playback is
clearer and smoother




Remote management

The android/Windows version has its own signal release system, which supports remote release of mobile phones and computers through the network



PARAMETERS












LCD screen specifications

Size24"
Backlighta-Si TFT-LCD
Display area size597.888（H)x 112.104 mm(V)
Resolution1920*360
Color16.7M
Brightness300cd/m²
Contrast1200:1
View angle89/89/89/89
Response time8ms
Frequency60Hz
LanguageChinese/English
Power supplyAC 100-240V 50/60Hz



Dispalay interface

VideoNA
AudioNA
OtherNA








System

CPUARM Corter-A35 Quad core
Memory1G DDR3
Flash8G EMMC
WIFI2.4G WIFI 802.11b : DQPSK, DBPSK, CCK 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK
BluetoothN/A
NetworkN/A
PortTF Card×1/OTG×1/Type-c×1
Android versionAndroid 8.1



Power

Power supply ～AC 100-240V 50/60Hz
Max consumption20W
Standby consumption≤0.1W（Board only）


Other

Storage temperature-20--60°
Amplifier power1×1.3W


Accessories

Remote controllerN/A
AC power adapterAC 12V/5A


Product key features:
