PRODUCT DISPLAY



PRODUCT ADVANTAGES
OEM/ODM customized
meet different needs
Timed play
Release information  at a fixed time
Remote operation
One-click publishing  via the web
IPS hard screen
178° wide viewing angle
timing boot
timing boot regularly shutdown


PRODUCT SIZE


PRODUCT FEATURES




Equipped with Android system

Intelligent system, cost-effective



1080P HD LCD screen

Kosintec 8.8 inch Bar Type LCD display monitor commercial screens advertising playing equipment with ultra-clear picture quality, with high brightness,no stretching and no deformation

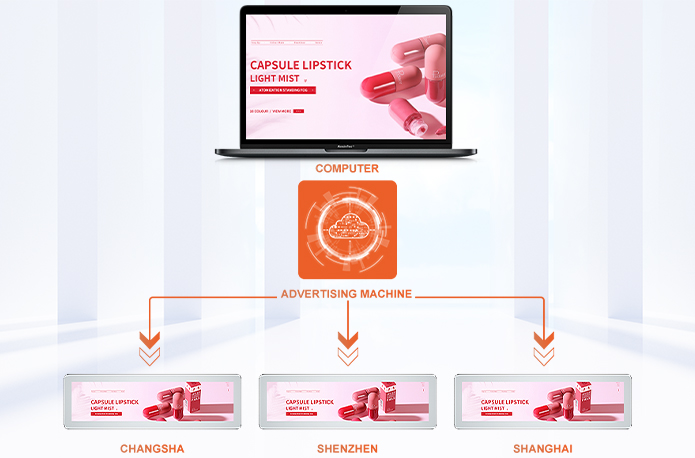

Remote management

Through the computer to remotely publish and upgrade the content to the device, you can control the device in different places.

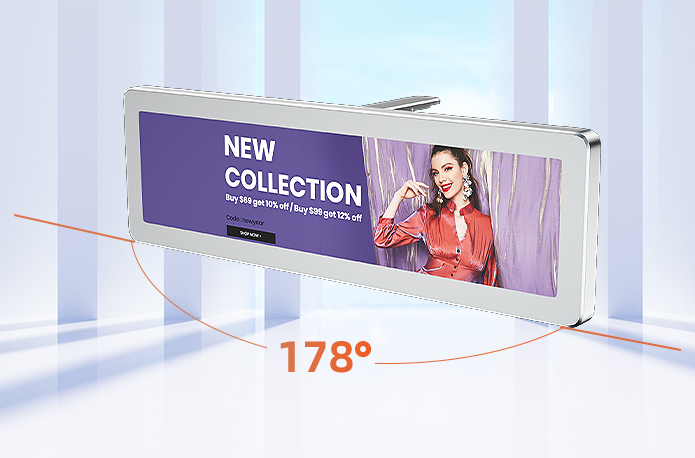

178°wide angle

178° wide-angle technology, using IPS highlight display, with richer colors and no chromatic aberration

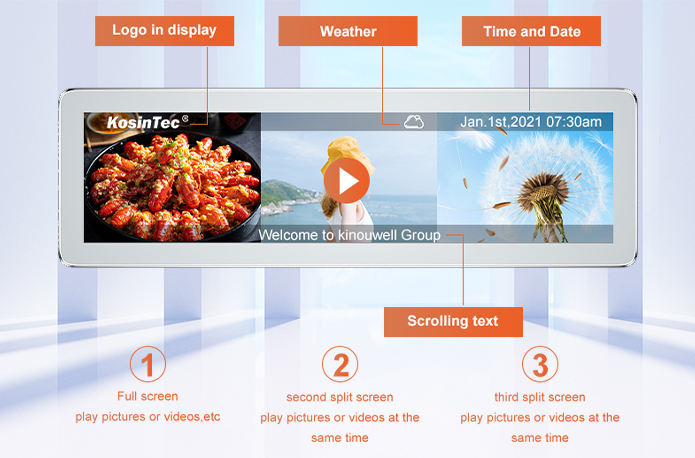

Intelligent split screen

Display areas can be divided according your needs.


PARAMETERS




System

CPUARM Corter A35 Quad Core
RAM1GB DDR3
Internal memory8GB EMMC
Operation systemAndroid 8.1
DisplayPanel8.8"bar screen
Resolution1920x480
Active area218.88(H)×54.72(V) mm
Viewing angle89/89/89/89(L/R/U/D)
Display modeNomally black ,IPS
View angle89/89/89/89
Contrast ratio800:1
Luminance600cd/m2 type


Network

WiFi802.11b/g/n
Ethernet100M/1000M ethernet




Interface

USBUSB 2.0 x2
SD card slotSD/MMC card slot
Power JackDC input
HDMIHDMI output
RJ45Ethernet

Media plays

Video formatMPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etv,supoort up to 4k .
Photojpeg



Other

VESAWall mounting
LanguageMulti-language
Working temp0--50degree
Power consumption24W

Accessories

AdapterAdapter,12V,3A
User manualyes


Product key features:
