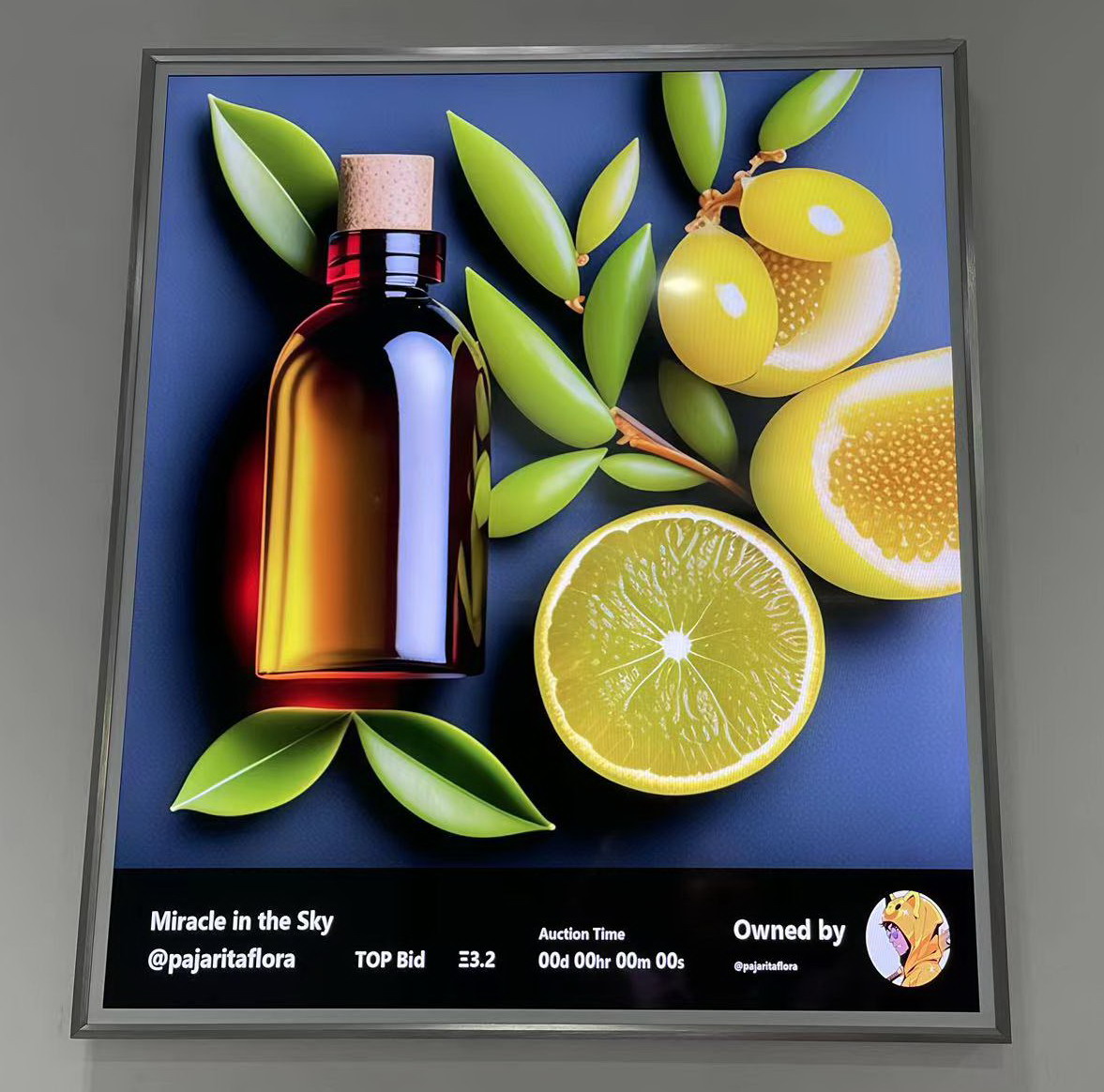

35.7 Square Display is a high-definition display player specially designed for distributed architecture, which is suitable for new retail multimedia display interaction, museum and exhibition industry instead of traditional advertising machine.
Its design is highly integrated, the thickness of the all-aluminum body is 35mm, not the traditional 16:9 display ratio, using 4K high-definition 100% high color gamut display. The embedded distributed information publishing system focuses on the centralized control and management of mobile phones/ipads, bringing you an unparalleled and efficient experience.
Support remote control

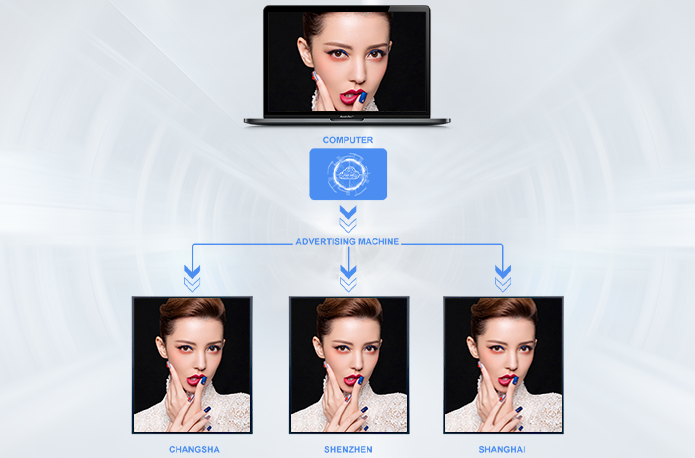

Publishing the information remotely to digital signage via computer. You can control the advertising machines in different locations

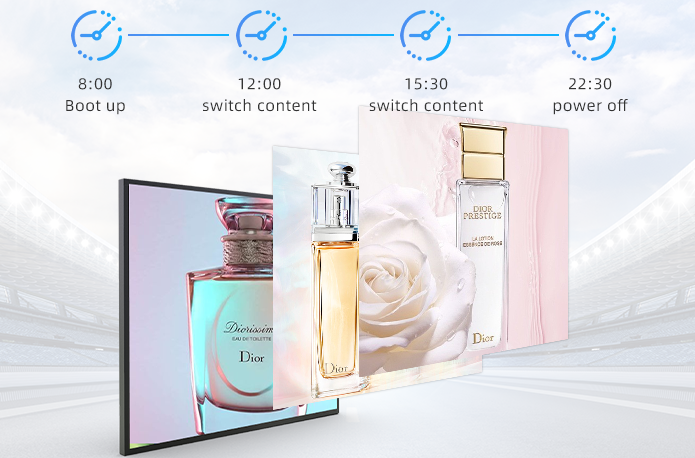

The advertisiment image automatically loops, and the image broadcast interval can be set!
Different installation methods

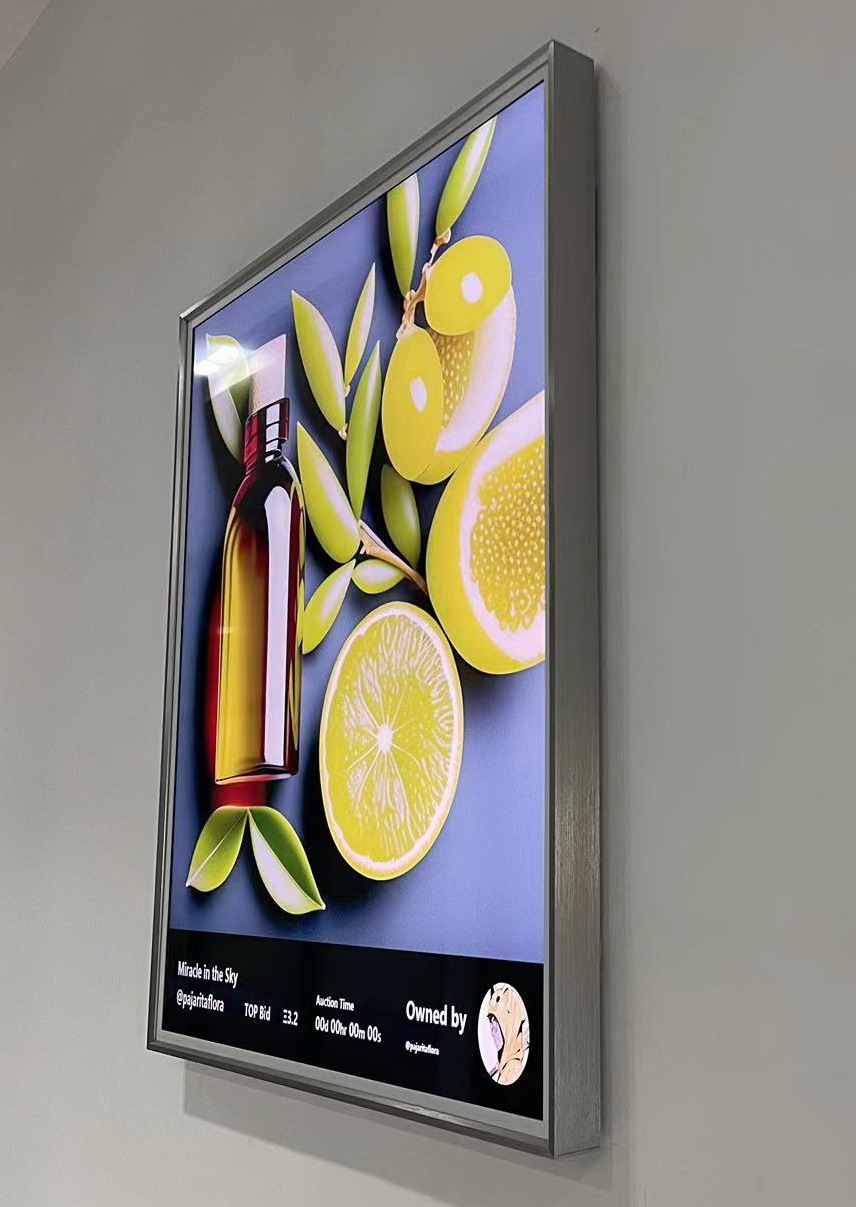

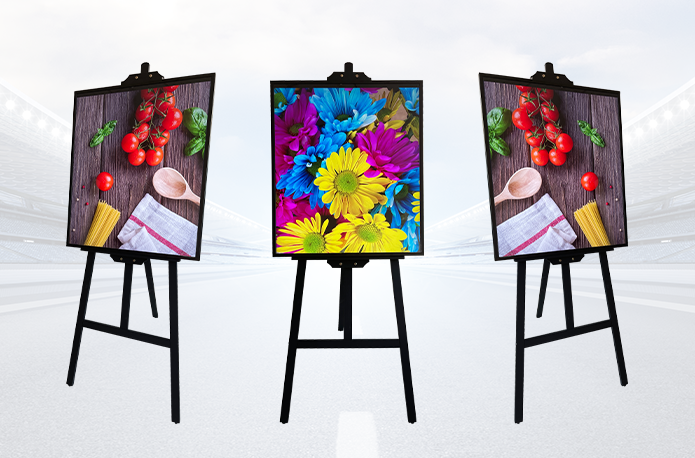

Support wall-mounted, embedded, bracket and other installation method.
LCD screen specifications | Size | 35.7" |
| Model | a-Si TFT-LCD | |
| Active area | 587mm(H)x679mm (V) | |
| Ratio | >3:1 | |
| Resolution | 1866*2160 | |
| Color | 16.7M | |
| Brightness | 550cd/m² | |
| Dot pitch | 0.315×0.315 mm (H×V) | |
| View angle | 89/89/89/89 | |
| Response time | 8ms | |
| Refresh frequency | 60HZ | |
| Language | Chinese/English | |
System | CPU | ARM Cortex-A55 |
| RAM | 2G DDR3 | |
| Internal memory | 16G EMMC | |
| WIFI | 2.4G WIFI 802.11b : DQPSK, DBPSK, CCK 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK | |
| Bluetooth | N/A | |
| Network | N/A | |
| Operation system | Android 9.0 | |
Power | Power supply | ～AC 100-240V 50/60Hz |
| Power consumption | 58W | |
Other | Operating temperature | 0--50° |
| Interface | HDMI inX1,Earphone 3.5mmX1,USB2.0X2 | |

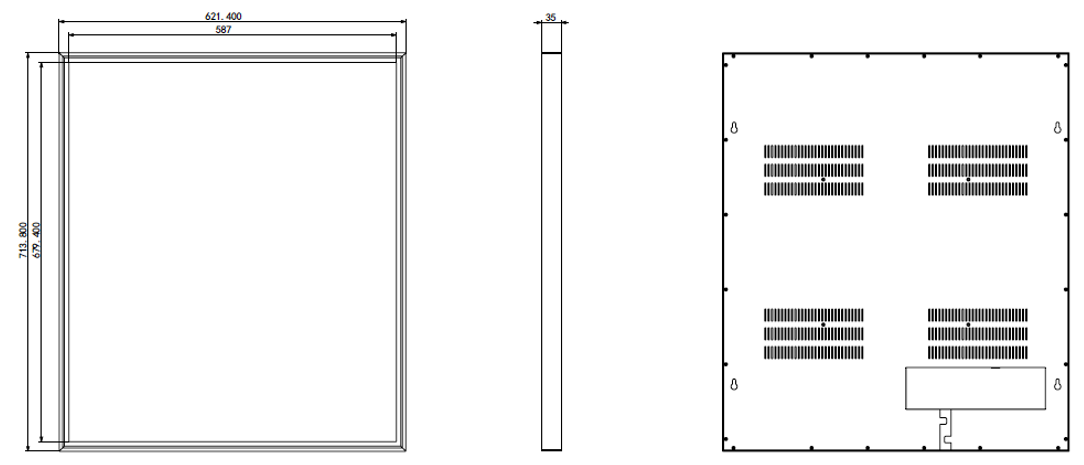

| Dimension | 621.4×713.8×35mm | |
| Weight | 10.4KG | |
Accessories | Remote control | N/A |
| Power adapter | AC 12V/5A |
