Ultra-thin narrow frame

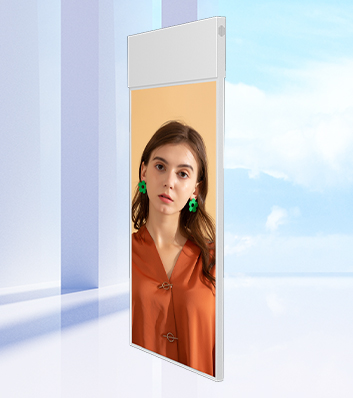

Double Sided Window Display
Double sided window display attracts attentions of pedestrians with the outwoard,sunlight readable screen.
Dual-screen simultaneous display and single-screen different display can target different audiences and broaden vision.

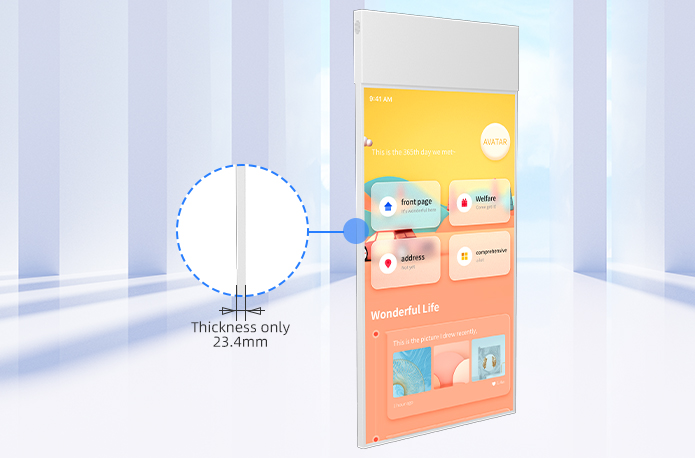

With two separate screens but thinner than most single-sided monitors, the monitor gives you a sleek and modern window display with a thickness of 23.4mm.

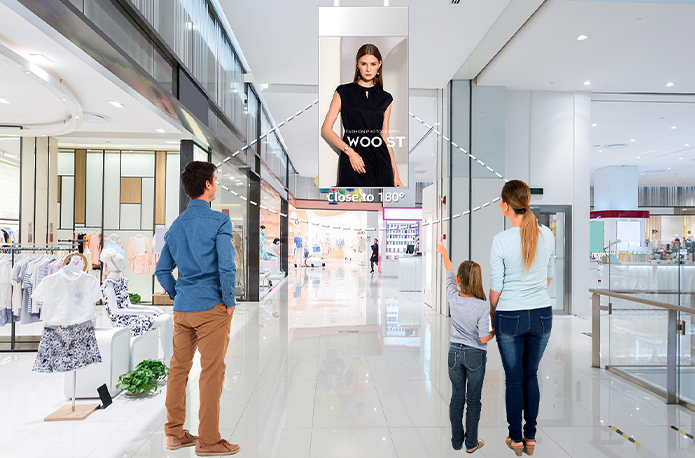

178 degree wide angle
178° wide-angle, with IPS highlight display, making the color fuller without chromatic aberration.
Energy saving
Adopt more advanced technology, upgrade the technology on the basis of the old version, and save more energy.
CMS Real Time Update
Built-in content management system, supports multiple simultaneous remote publishing and management.
LCD screen specifications | Size | 55" class (54.5" diagonal) |
Panel Technology | IPS, M+ (WRGB) | |
Aspect Ratio | 16 : 9 | |
Native Resolution | 1,920 x 1,080 (FHD) | |
Brightness | 2,500 cd/m2 (Standard.), 1,500 ~ 5,000 cd/m2 (Customized) | |
Contrast | 1300:1 | |
View angle | 178 x 178 | |
Surface Treatment | Hard Coating 2H, Reflection 2.0%, QWP | |
Lifetime | 50000 Hrs | |
Operation Hours | 24 Hrs | |
Orientation | Landscape & Portrait | |

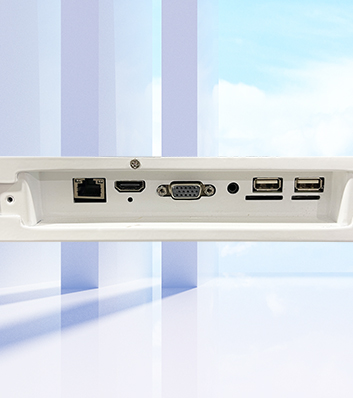

Connectivity | Input | HDMI, USB, Audio, VGA, DC12V |
External Control | RS232 | |
Physical specfication | Bezel Color | Black |
Bezel Width | 8.8 mm (T/B/L/R) | |

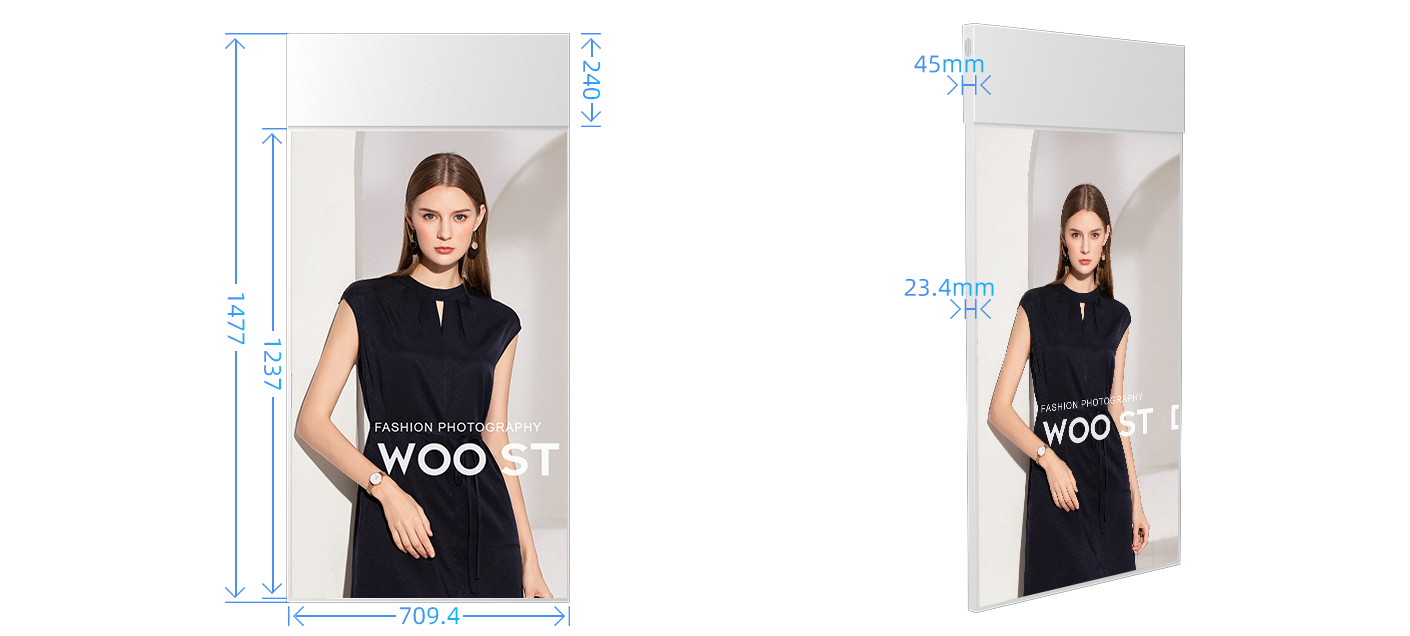

Monitor Dimension (W x H x D) | 1232.3 x 703.8 x 85.3 mm | |
Weight (Monitor Only) | 31.0 kg | |
Carton Dimensions (W x H x D) | 1420*260*880mm | |
Packed Weight | 40.0 kg | |
VESA Standard Mount Interface | VESATM Standard Mount Interface 400 x 500 mm | |
Environmental conditions | Operation Temperature | 0°C to 50°C |
Operation Humidity | 10% to 80% | |
Power | Power Type | Built-In Power |
Power Supply | AC 100-240 V, 50/60 Hz | |
Power Consumption | 72 W | |
Standard(Certification) | Certification | CE |
Accessories | Basic | Remote Controller (No Batteries Included), Power Cord, IR Receiver (w/ Ambient Light Sensor) |
Optional | Mounting Bracket | |
Warranty | Warranty | 1.5 Year Parts |
178° Wide-angle Color is more ture
Adopt IPS high-brightness display,high transmittance and low
power consumption,release and angle color,make the picture
more realistic,and the color is more saturated!
Can display video,pictures,text and other rich content at
the same time,support multi-module split screen
LED Backlight
Improves brightness and contrast as well as improving their
lifespan and reducing their power consumption.
Support time-scheduled
programs,time switch machine
Customizable program release time,equipment switching time,
let you save energy and worry
Cloud Bases CMC Upgrade
Player could be upgrade to network CMS,if standalone version
can’t meet your control demand,via network CMS,you can
manage the player any time in any place with Internet.
LCD screen specifications | Size | 35" |
Backlight | a-Si TFT-LCD | |
Resolution | 2880*158 | |
Color | 16.7M | |
Brightness | 400cd/m² | |
Contrast | 800:1 | |
View angle | 89/89/89/89 | |
Response time | 8ms | |
Power supply | AC 100-240V 50/60Hz | |
System | CPU | A55, 1.9GHz,Android 9.0 |
RAM | 2GB | |
Internal memory | 8GB EMMC |
